APX 740

APX 740 - yüksek yoğunluklu, yüksek kapasiteli ortamlar için amiral gemisi 4x4: 4 ürünümüz

• Power consumption 22.4 W
• Power over Ethernet (PoE) requirements 802.3at
• Operating temperature 0°-40° C
• Storage temperature -40°-70° C
• Humidity 10-95% non-condensing
• Hazardous substances RoHS-2 and REACH compliant

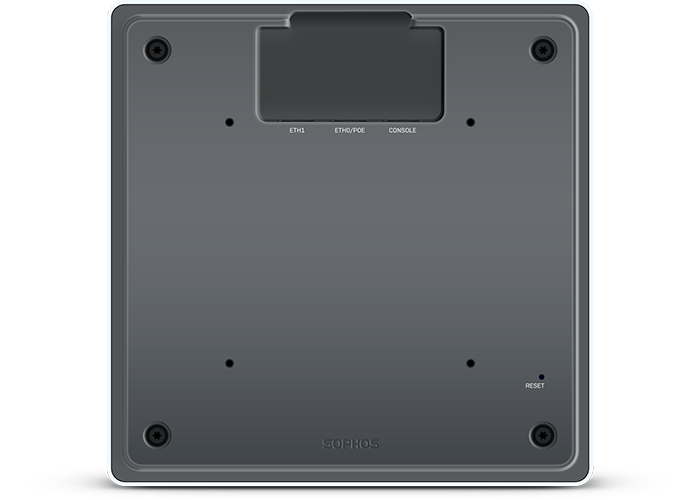

• I/O ports 1x RJ45 connector console serial port 1x RJ45 10/100/1000 Ethernet port 1x RJ45 10/100/1000 Ethernet w/PoE (802.3at) 1x Reset button 1x Kensington security slot
• Memory 1 Gbyte DDR3L 512 Mbyte NAND Flash 4 Mbyte SPI NOR Flash
• Mounting Desktop Wall-mount hang Ceiling (15/16, 9/16, 3/8 inch ceiling tracks)
• Dimensions (Width x Depth x Height) 195x195x43 mm
• Weight 1.012 kg
• Radios 1x 2.4 GHz single band 1x 5 GHz single band 1x Bluetooth low energy (BLE)
• Antennas 4x internal 2.4 GHz antenna for Radio-1 (omni-directional) 4x internal 5 GHz antenna for Radio-2 (omni-directional) 1x internal 2.4 GHz antenna for BLE
• Antenna Peak Gain 4.1 dBi at 2.4 GHz, 5.7 dBi at 5 GHz
• MIMO capabilities 4x4:4
• Supported WLAN standards IEEE 802.11 a/b/g/n/ac Wave 2
• SSIDs 8 per radio, 16 in tota
• Max. Throughput 1733 Mbps (5G) + 600 Mbps (2.4G)
• CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043)
