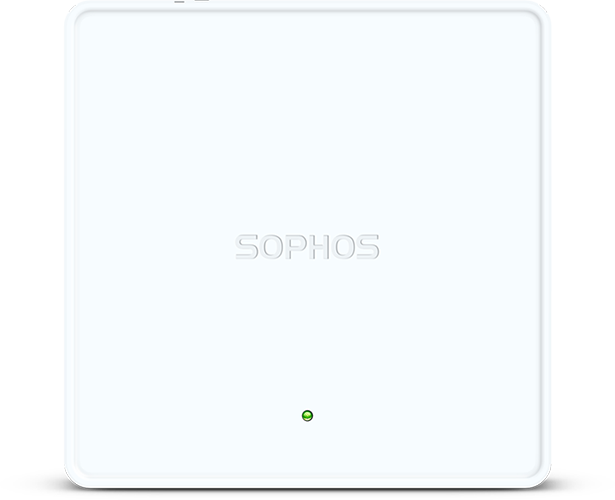

APX 120
Açıklama
APX 120 - temel bağlantı gereksinimleri olan bütçeye duyarlı projeler için giriş seviyesi 2x2: 2 erişim noktası
- Power consumption 11.8 W (max.)
- Power over Ethernet (PoE) requirements 802.3af
- DC Power Supply 12V/1A
- Operating temperature 0°-40° C
- Storage temperature -40°-80° C
- Humidity 10-95% non-condensing
- Hazardous substances RoHS-2 and REACH compliant

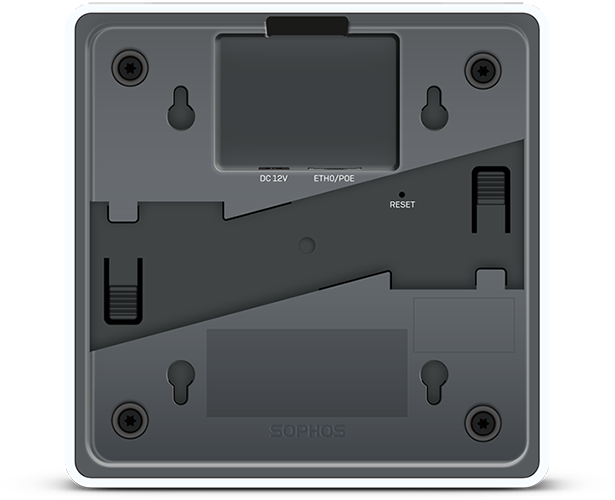

- I/O ports 1x RJ45 10/100/1000 Ethernet w/PoE (802.3af) 1x Reset button 1x Kensington security slot
- Memory 256 MByte DDR3 256 Mbyte NAND Flash 2 Mbyte SPI NOR Flash
- Mounting Desktop Wall-mount hang Ceiling (15/16 T-bar, flat ceiling)
- Dimensions (Width x Depth x Height) 144x144x33.5 mm
- Weight 256g
- Radios 1x 2.4 GHz single band 1x 5 GHz single band
- Antennas 2x internal dual band antennas Antenna peak gain: 3.7 dBi at 2.4 GHz / 4.2 dBi at 5 GHz
- MIMO capabilities 2x2 MIMO at 2.4 GHz, and 2x2 MU-MIMO (802.11ac Wave 2) at 5 GHz
- Supported WLAN standards IEEE 802.11 a/b/g/n/ac
- SSIDs 8 per radio, 16 in total
- Max. throughput 867Mbps (5 G) + 300Mbps (2.4 G)
- Certifications & Compliance** CB, UL, CE, FCC, ISED (IC), RCM, MIC, Anatel,EN 60601-1-2 (Medical Equipment Directive)
