APX 320

APX 320 - 2x2: 2 erişim noktası, çift 5 GHz özellikli, yüksek yoğunluklu okul ortamlarında veya küçük perakende senaryolarında ideal

• Power consumption 11.5 W (max.)
• Power over Ethernet (PoE) requirements 802.3af
• Operating temperature 0°-40° C
• Storage temperature -40°-70° C
• Humidity 10-95% non-condensing
• Hazardous substances RoHS-2 and REACH compliant

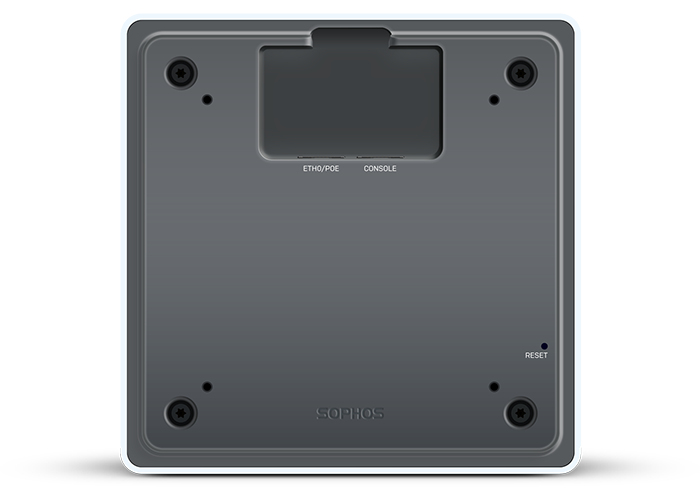

• I/O ports 1x RJ45 connector console serial port 1x RJ45 10/100/1000 Ethernet w/PoE (802.3af) 1x Reset button 1x Kensington security slot
• Memory 512 MByte DDR3L 512 Mbyte NAND Flash 4 Mbyte SPI NOR Flash
• Mounting Desktop Wall-mount hang Ceiling (15/16, 9/16, 3/8 inch ceiling tracks)
• Dimensions (Width x Depth x Height) 155x155x38 mm
• Weight 0,474 kg
• Radios 1x 2.4 GHz/5 GHz dual-band 1x 5 GHz single band 1x Bluetooth low energy (BLE)
• Antennas 2x internal dual band antenna for Radio-1 (omni-directional) 2x internal 5 GHz antenna for Radio-2 (omni-directional) 1x internal 2.4 GHz antenna for BLE
• Antenna Peak Gain 3.7 dBi at 2.4 GHz, 6.7 dBi at 5 GHz
• MIMO capabilities 2x2:2
• Supported WLAN standards IEEE 802.11 a/b/g/n/ac Wave 2
• SSIDs 8 per radio, 16 in total
• Max. Throughput 867 Mbps (5G) + 867 Mbps (5G)
• CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043)
