Access Point : APX 530

APX 530

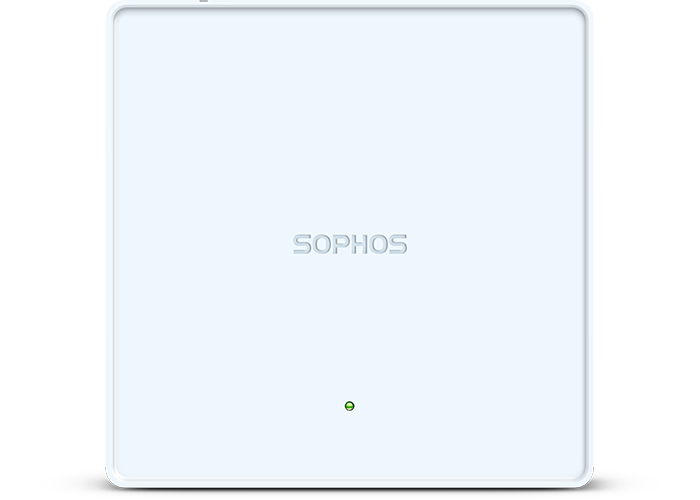

APX-530-Front-01
APX-530-Front-015

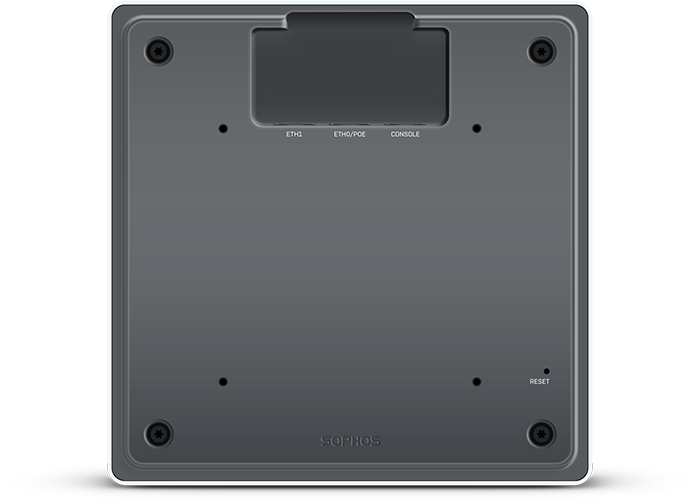

APX-530-Back-01
Açıklama

APX 530 - her boyutta tipik ofis ortamı için yüksek performanslı 3x3: 3 erişim noktası

  • Power consumption 16.7 W (max.)
  • Power over Ethernet (PoE) requirements 802.3at
  • Operating temperature 0°-40° C
  • Storage temperature -40°-70° C
  • Humidity 10-95% non-condensing
  • Hazardous substances RoHS-2 and REACH compliant
  • I/O ports 1x RJ45 connector console serial port 1x RJ45 10/100/1000 Ethernet port 1x RJ45 10/100/1000 Ethernet w/PoE (802.3at) 1x Reset button 1x Kensington security slot
  • Memory 1 Gbyte DDR3L 512 Mbyte NAND Flash 4 Mbyte SPI NOR Flash
  • Mounting Desktop Wall-mount hang Ceiling (15/16, 9/16, 3/8 inch ceiling tracks)
  • Dimensions (Width x Depth x Height) 183x183x39 mm
  • Weight 0,922 kg
  • Radios 1x 2.4 GHz single band 1x 5 GHz single band 1x Bluetooth low energy (BLE)
  • Antennas 3x internal 2.4 GHz antenna for Radio-1 (omni-directional) 3x internal 5 GHz antenna for Radio-2 (omni-directional) 1x internal 2.4 GHz antenna for BLE
  • Antenna Peak Gain 4.7 dBi at 2.4 GHz, 5.9 dBi at 5 GHz
  • MIMO capabilities 3x3:3
  • Supported WLAN standards IEEE 802.11 a/b/g/n/ac Wave 2
  • SSIDs 8 per radio, 16 in total
  • Max. Throughput 1300 Mbps (5G) + 450 Mbps (2.4G)
  • CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel (planned), EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043)
