PerformanceXG 115(w) Rev. 3
- User Load 60
- Firewall throughput 4 Gbps
- Firewall IMIX 2,0 Gbps
- VPN throughput 490 Mbps
- IPS throughput 1,22 Mbps
- NGFW (IPS + App Ctrl) max. 1 Gbps
- Antivirus throughput (proxy) 600 Mbps
- Concurrent connections 6,000,000
- New connections/sec 35,000
- Maximum licensed users unrestricted
Wireless Specification(XG 115w only)
- No. of antennas 2 external
- MIMO capabilities 2 x 2:2
- Wireless interface 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
Physical interfaces
- Storage (local quarantine/logs) integrated SSD
- Ethernet interfaces (fixed) 4 GbE copper 1 GbE SFP (shared)*
- Connectivity modules (optional) SFP DSL module (VDSL2) SFP Transceivers

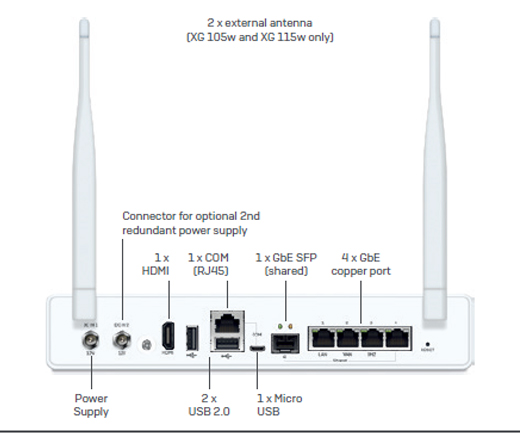

- I/O ports (rear) 2 x USB 2.0 1 x Micro-USB 1 x COM (RJ45) 1 x HDMI
- Power supply External auto ranging DC: 12V, 100-240VAC, 36W@50-60 Hz Redundant PSU optional (external)
Physical specifications
- Mounting Rackmount kit available (to be ordered separately)
- Dimensions Width x Depth x Height 245 x 157 x 44 mm 9.65 x 6.18 x 1.73 inches
- Weight 1.17 kg / 2.58 lbs (unpacked) 2.4 kg / 5.29 lbs (packed) (w models minimally higher)
