XG 330

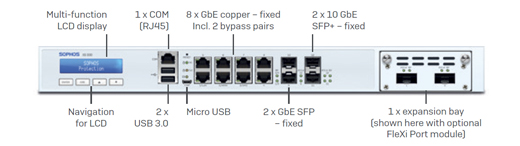

Front View

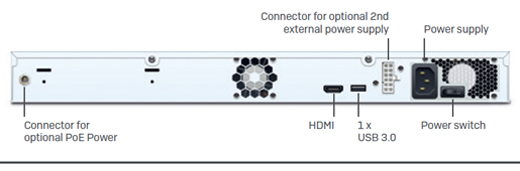

Back View
Environment
- Power consumption
XG 330: 36W, 122 BTU/hr (idle)
54W, 184 BTU/hr (full load)
- Operating temperature
0-40°C (operating)
-20 to +80°C (storage)
- Humidity
10%-90%, non-condensing
Product Certifications
- Certifications
CB, UL, CE, FCC Class A, ISED,
VCCI, RCM, CCC, KC, BIS
PerformanceXG 330 Rev. 2
- User Load
700
- Firewall throughput
33 Gbps
- Firewall IMIX
12.5 Gbps
- VPN throughput
3.2 Mbps
- IPS throughput
8.5 Mbps
- NGFW (IPS + App Ctrl) max.
5.5 Gbps
- Antivirus throughput (proxy)
6 Mbps
- Concurrent connections
17,500,000
- New connections/sec
200,000
- Maximum licensed users
unrestricted
Physical interfaces
- Storage (local quarantine/logs)
integrated SSD
- Ethernet interfaces (fixed)
8 GbE copper (incl. 2 bypass pairs)
2 GbE SFP*
2 10 GbE SFP+*
- No. of expansion slots
1
1 GbE SFP*
- FleXi Port modules (optional)
8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
4 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port GbE PoE
8 port GbE PoE
4 port GbE copper LAN bypass
- I/O ports
2 x USB 3.0 (front)
1 x Micro USB (front)
1 x USB 3.0 (rear)
1 x COM (RJ45) (front)
1 x HDMI (rear)
- Display
Multi-function LCD module
- Power supply
Internal auto-ranging
100-240VAC, 50-60 Hz
Redundant PSU optional (external)
Physical specifications
- Mounting
1U rack mount
(2 rackmount ears included)
- Dimensions
Width x Depth x Height
438 x 405.5 x 44mm
17.24 x 15.96 x 1.75 inches
- Weight
5.8 kg / 12.78 lbs (unpacked)
8.8 kg / 19.4 lbs (packed)
