XG 450

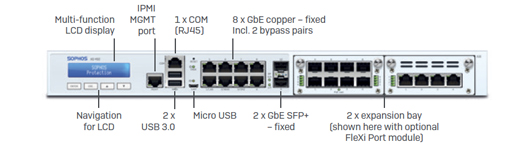

Front View

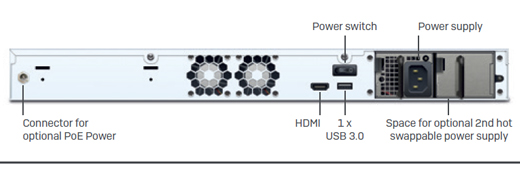

Back View
Environment
- Power consumption
XG 450: 31W, 107 BTU/hr (idle)
83W, 283 BTU/hr (full load)
- Operating temperature
0-40°C (operating)
-20 to + 80°C (storage)
- Humidity
10%-90%, non-condensing
Product Certifications
- Certifications
CB, UL, CE, FCC Class A, ISED,
VCCI, RCM, CCC, KC, BIS
PerformanceXG 450 Rev. 2
- User Load
1500
- Firewall throughput
50 Gbps
- Firewall IMIX
17.5 Gbps
- VPN throughput
5.5 Mbps
- IPS throughput
10 Mbps
- NGFW (IPS + App Ctrl) max.
7.5 Gbps
- Antivirus throughput (proxy)
7 Mbps
- Concurrent connections
20,000,000
- New connections/sec
200,000
- Maximum licensed users
unrestricted
Physical interfaces
- Storage (local quarantine/logs)
2 x integrated SSD
- Ethernet interfaces (fixed)
88 GbE copper (incl. 2 bypass pairs)
2 10 GbE SFP+*
- No. of expansion slots
2
1 GbE SFP*
- FleXi Port modules (optional)
8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
4 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port GbE PoE
8 port GbE PoE
4 port GbE copper LAN bypass
- I/O ports
2 x USB 3.0 (front)
1 x Micro USB (front)
1 x USB 3.0 (rear)
1 x COM (RJ45) (front)
1 x IPMI (front)
1 x HDMI (rear)
- Display
Multi-function LCD module
- Power supply
Internal auto-ranging
100-240VAC, 50-60 Hz
Hot Swap Redundant PSU optional (internal)
Physical specifications
- Mounting
1U rackmount
(sliding rails incl.)
- Dimensions
Width x Depth x Height
438 x 507.7 x 44mm
17.24 x 19.99 x 1.75 inches
- Weight
7.8 kg / 17.2 lbs (unpacked)
14.8 kg / 32.63 lbs (packed)
