XG 550

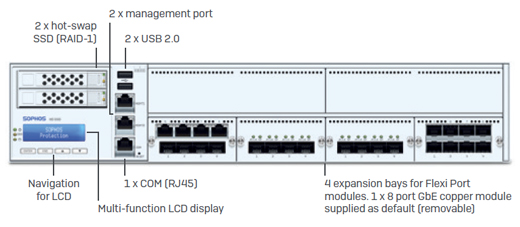

Front View

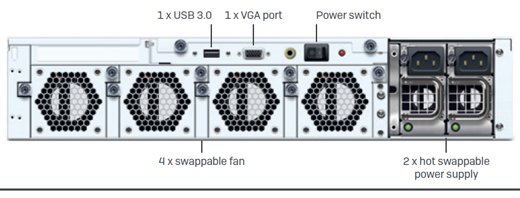

Back View
Environment
- Power consumption
XG 550: 270.5W, 922.98BTU/hr (idle)
416.1W, 1419.79BTU/hr (full load)
- Operating temperature
0-40°C (operating)
-40 to +70°C (storage)
- Humidity
5%-90%, non-condensing
Product Certifications
- Certifications
CB, UL, CE, FCC Class A, ISED,
VCCI, RCM, CCC, KC, BIS
PerformanceXG 550 Rev. 2
- User Load
2500
- Firewall throughput
65 Gbps
- Firewall IMIX
23 Gbps
- VPN throughput
8.4 Mbps
- IPS throughput
17 Mbps
- NGFW (IPS + App Ctrl) max.
9 Gbps
- Antivirus throughput (proxy)
10 Mbps
- Concurrent connections
30,000,000
- New connections/sec
220,000
- Maximum licensed users
unrestricted
Physical interfaces
- Storage (local quarantine/logs)
2 x integrated
hot-swap SSD (RAID)
- Ethernet interfaces (removable)
8 GbE copper
2 10 GbE SFP+*
- No. of FleXi Port slots
4
- FleXi Port modules (optional)
8 port GbE copper
8 port GbE SFP*
2 port 10 GbE SFP+*
2 port 40 GbE QSFP+*
4 port 10 GbE SFP+*
4 port SFP* plus 4 port GbE copper LAN bypass
- I/O ports
2 x USB 2.0 (front)
1 x USB 3.0 (rear)
2 x Mgmt Port (eth0/eth1, front)
1 x COM (RJ45) (front)
1 x VGA (rear)
- Display
Multi-function LCD module
- Power supply
2 x hot-swap internal auto-ranging
100-240VAC, 50-60 Hz PSU
Physical specifications
- Mounting
2U sliding rails (included)
- Dimensions
Width x Depth x Height
438 x 600 x 88 mm
17.24 x 23.62 x 3.46 inches
- Weight
17.8 kg / 39.24 lbs (unpacked)
27 kg / 59.53 lbs (packed)
