XG 750

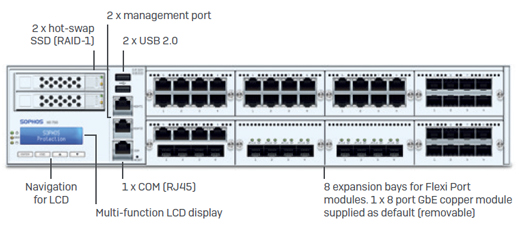

Front View

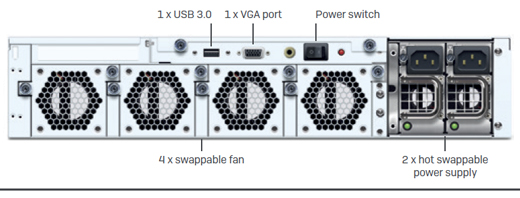

Back View
Environment
- Power consumption 326.5W, 1114.01BTU/hr (idle) 512.2W, 1747.62BTU/hr (full load)
- Operating temperature 0-40°C (operating) -40 to +70°C (storage)
- Humidity 5%-90%, non-condensing
Product Certifications
- Certifications CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
PerformanceXG 750 Rev. 2
- User Load 6000
- Firewall throughput 100 Gbps
- Firewall IMIX 33.5 Gbps
- VPN throughput 11 Mbps
- IPS throughput 22 Mbps
- NGFW (IPS + App Ctrl) max. 11.8 Gbps
- Antivirus throughput (proxy) 17 Mbps
- Concurrent connections 30,000,000
- New connections/sec 300,000
- Maximum licensed users unrestricted
Physical interfaces
- Storage (local quarantine/logs) 2 x integrated hot-swap SSD (RAID)
- Ethernet interfaces (removable) 8 GbE copper
- No. of FleXi Port slots 8
- FleXi Port modules (optional) 8 port GbE copper 8 port GbE SFP* 2 port 10 GbE SFP+* 2 port 40 GbE QSFP+* 4 port 10 GbE SFP+* 4 port SFP* plus 4 port GbE copper LAN bypass
- I/O ports 2 x USB 2.0 (front) 1 x USB 3.0 (rear) 2 x Mgmt Port (eth0/eth1, front) 1 x COM (RJ45) (front) 1 x VGA (rear)
- Display Multi-function LCD module
- Power supply 2 x hot-swap external auto ranging 100-240VAC, 50-60 Hz
Physical specifications
- Mounting 2U sliding rails (included)
- Dimensions Width x Depth x Height 438 x 600 x 88 mm 17.24 x 23.62 x 3.46 inches
- Weight 17.8 kg / 39.24 lbs (unpacked) 27 kg / 59.53 lbs (packed)
