XGS 88 \ XGS 88w

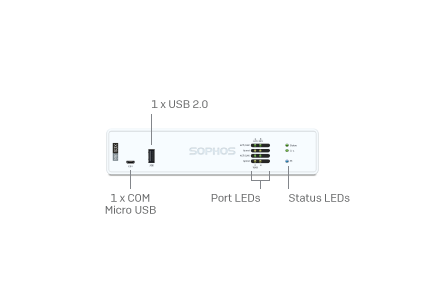

Front View

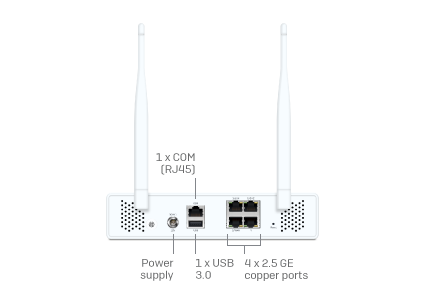

Back View

Environment

Power supply External auto-ranging AC-DC 100-240VAC, 1.7A@50-60 Hz 12VDC, 3.33A, 40W
Power consumption (typical) 12.5 W/42.65 BTU/hr (88 idle) 14.5 W/49.48 BTU/hr (88w idle) 18 W/61.42 BTU/hr (88 max.) 22 W/75.07 BTU/hr (88w max.)
Noise level (avg.) 0 dBA - fanless
Operating temperature 0°C to 40°C (operating) -20°C to +70°C (storage)
Humidity 10% to 90%, non-condensing

Product Certifications

Certifications CB, CE, UKCA, UL, FCC, ISED, VCCI, KC* , BSMI, RCM, NOM, Anatel* , TEC

Performance XGS 88(w)

Firewall throughput 9,900 Mbps
Firewall IMIX 6,500 Mbps
IPS throughput 2,000 Mbps
Threat protection throughput 2,000 Mbps
NGFW 2,000 Mbps
Concurrent connections 1,600,000
New connections/sec 40,500
IPsec VPN throughput 6,000 Mbps
IPsec VPN concurrent tunnels 500
SSL VPN concurrent tunnels 500
Xstream SSL/TLS Inspection 600 Mbps
Xstream SSL/TLS concurrent connections 8,192

Wireless Specification (XGS 88w only)

No. of antennas 2 external
MIMO capabilities 2 x 2:2
Wireless interface Wi-Fi 6 (802.11ax) 2.4 GHz/5 GHz concurrent

Physical interfaces

Storage 16 GB eMMC
Ethernet interfaces (fixed) 4 x 2.5 GE copper
Management ports 1 x COM RJ45 1 x Micro-USB (cable incl.)
Other I/O ports 1 x USB 2.0 (front) 1 x USB 3.0 (rear)
Number of expansion slots 0
Optional add-on connectivity n/a

Physical specifications

Mounting Rackmount kit available (to be ordered separately)
Dimensions: Width X height X depth 200 x 44 x 180 mm
Weight 1.4 kg/3.08 lbs (unpacked) 2 kg/4.41 lbs (packed) (w-model minimally more)
